Chain Assemblies

Finished assemblies.
Ready when you are.

Pre-cut chain, attachments, and complete custom assemblies—cut, finished, bagged, labeled, and barcoded to your specs. Built for manufacturers who need parts that arrive ready to use.

Request a Quote Call 1-914-664-7500

Lower costPre-cut lengths typically cost less than buying spools and cutting in-house.

Ready to useAssemblies can ship bagged, labeled, and barcoded for your line or warehouse.

Made in the USAStandard attachments manufactured in the USA with consistent quality.

Fully customizableAny length, finish, attachment, private label, or full custom assembly.

Pre-Cut Chain

The most cost-effective way to buy ball chain

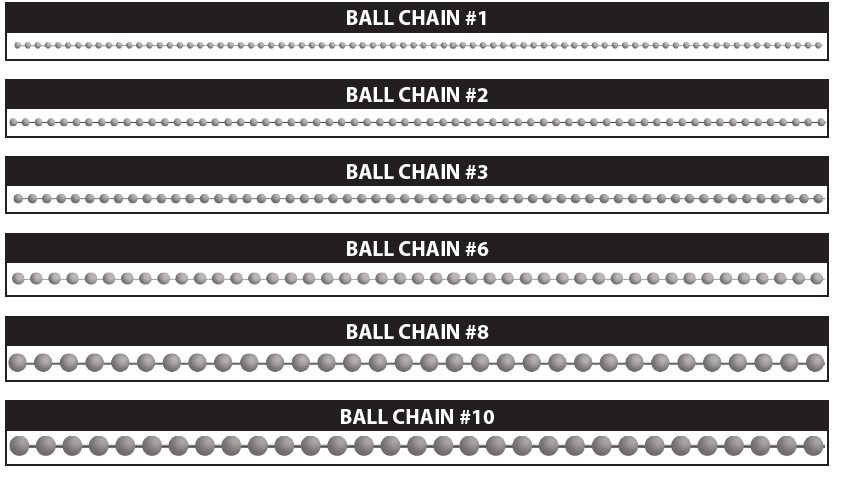

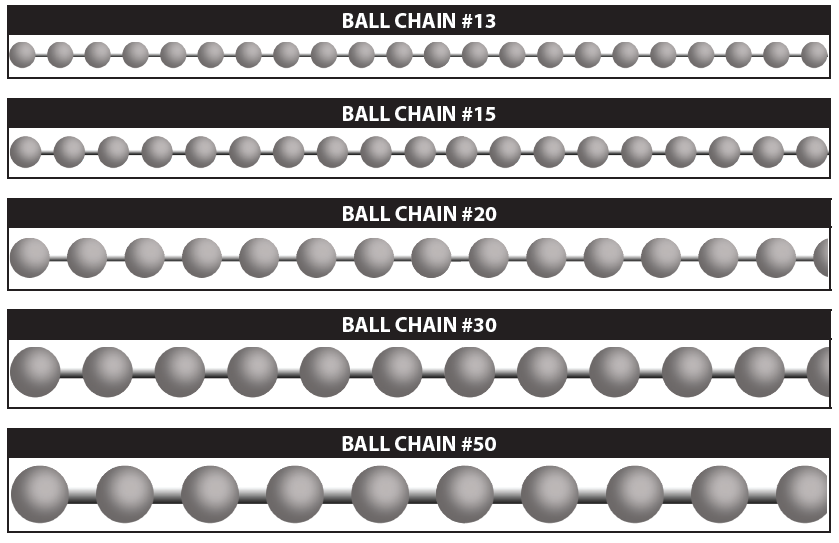

Stock lengths from 3" to 36" in 1" increments. Special lengths available for larger quantities. Each pre-cut can include a matching connector or “B” coupling on one end.

Connectors for #8 and smaller · “B” couplings for #10 and larger · Standard finishes, materials, and enamel colors available · Pantone matching on request

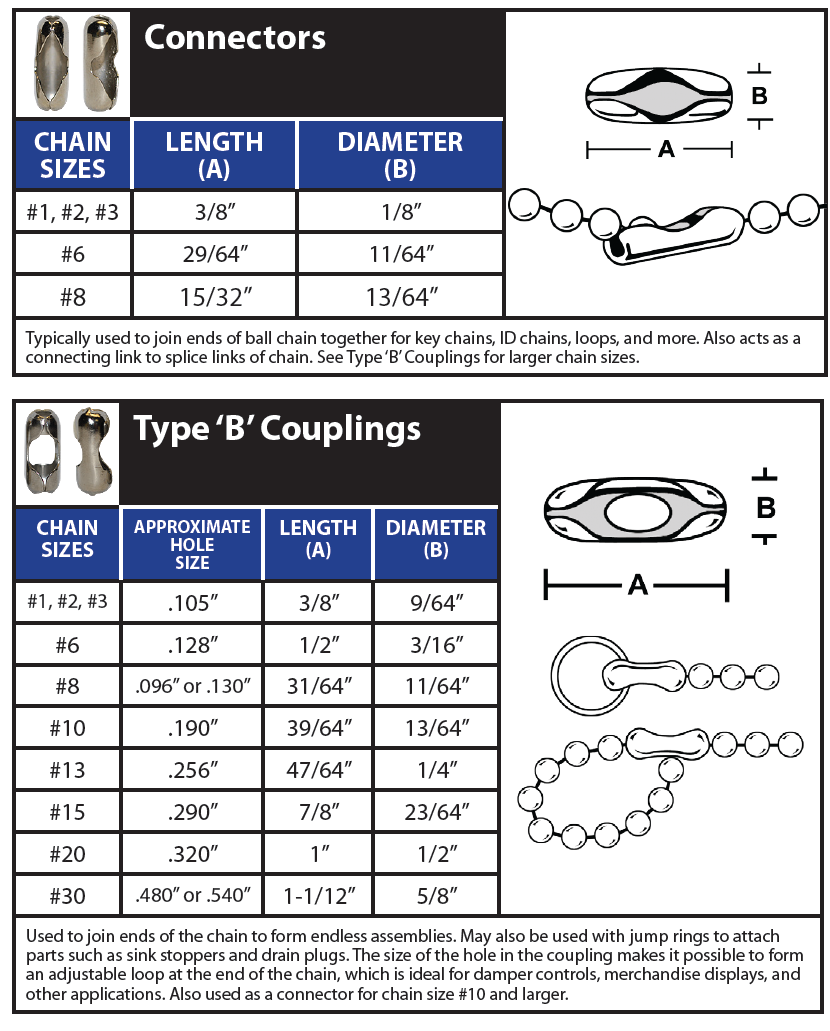

Connectors and Type B Couplings specifications

Attachments

Every common attachment—made in the USA

From couplings and connectors to pendants, sleeves, and open balls. Standard finishes include nickel, brass, antique, black coated, stainless, and more.

Type “A” Couplings

Flush assembly with screws, bolts, or rivets—ideal for retaining chain on tags and small hardware.

Type “B” Couplings

Join chain ends for endless assemblies, or use with jump rings for stoppers and plugs.

Type “D” Couplings

Flexible, non-swiveling permanent attachment. Often used as a retaining device with a hook or lock.

Connectors

Splice small chain for key chains, ID chains, and loops—or join lengths in production.

Pendants

Finish pull chains for lamps, ceiling fans, and appliance controls. Also used on vertical blind chain.

Sleeves & Open Balls

Sleeves for pens and outlet caps. Open balls to form or close endless loops—pliers available.

End Rings & Jump Rings

Strength matched to the chain

End Rings

Tensile strength equals the chain in all sizes. Standard and twin end rings in standard metals and finishes.

One-end assemblies—specify length from ring center to chain end
Twin end rings for both ends
Custom sizes on request

Jump Rings

For jewelry, charms, drain plugs, and small household hardware. Round, oval, and triangular styles.

Nickel plated steel or brass plated steel
Sizes from .062" to .093" wire
Custom sizes available

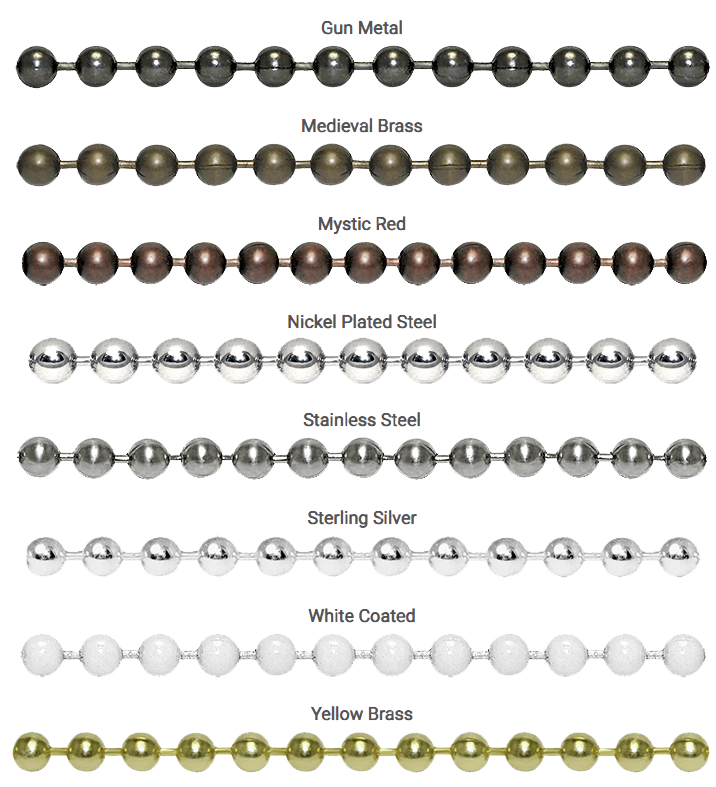

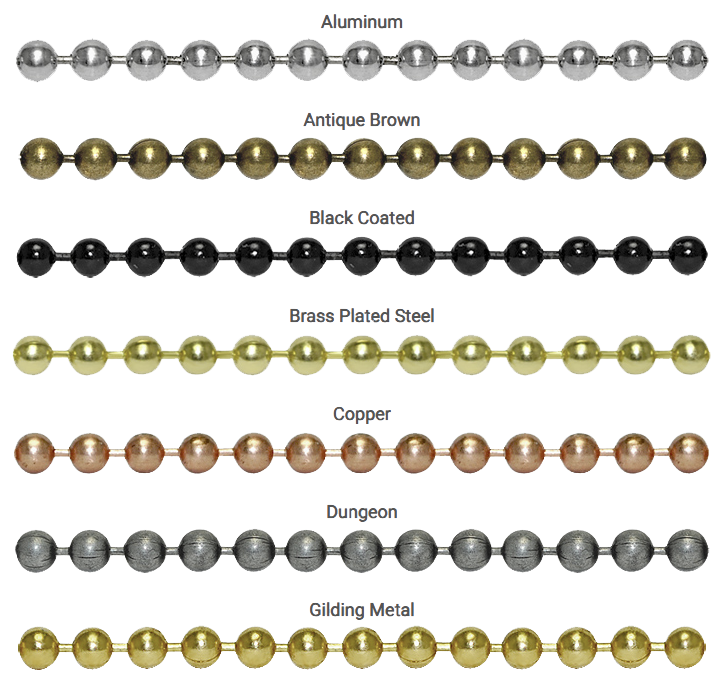

Materials & Finishes

Options for every application

Base MetalsStainless Steel, Carbon Steel, Yellow Brass, Copper, Aluminum

PlatingNickel-Plated, Brass-Plated, Copper-Plated, Antique Finishes, Gun Metal

ColorsIn addition to our standard finishes, we also offer a wide selection of color chain spools and matching attachments.

Custom Applications

Built for how you actually use chain

Complimentary quotes for complete assemblies to your exact requirements. Finished loops and assemblies can be bagged, labeled, and barcoded.

Pull Chain

Lamp pulls, ceiling fan pulls, appliance and power-switch pulls. Metal or plastic pendants available. #6 is the most common for fans and lamps.

Retention Chain

Gas caps, pens, swatch samples, nail clippers, nozzle caps—and any product that must stay attached.

Plumbing Chain

Drain plugs, custom assemblies, and retention hardware. Stainless and brass preferred for rust resistance.

Drive Chain

Durable, non-kinking chain for drive, pulley, and machine applications. Finishes and sizes customized to your specs.

Sourcing

If you can’t find it, we can often make it

Beyond our own catalog, we work with partners worldwide to produce custom industrial chain products and solutions. One conversation is usually enough to know if we can help.

Tell us what you need.

Share size, length, material, finish, and attachments. We’ll come back with pricing and lead time.

Request a Quote or call 1-914-664-7500
